Web Acquiring Documentation

KhanPay processing center. Developer's Guide

Introduction

Following instruction explains how to make full cycle of payment acquiring:

Steps to start implementation

---

Using your point id and provided certificate you have to make api POST request to the backend:

1. Make a request to get uui

---

The data formats used are shown in Table 1

Table 1 - Data formats used

Format	Description
intN	N-byte integer
numeric(N,M)	Fractional, N - number of characters, M - number of characters of the fractional part. The separator of the fractional and integer parts is a dot
varchar(N)	String, not exceeding N bytes in length. All strings are transmitted in UTF-8 encoding
Boolean	Boolean, valid values are true, false
Time	A data type that stores date and time in the format YYYY-MM-DD-Thh:mm:ss[+|-]HHMI, where: 1. YYYY is the year written in 4 digits; 2. MM—month with leading zero; 3. DD - day of the month; 4. T - separator; 5. hh — number of hours in 24-hour format with leading zero; 6. mm — number of minutes with leading zero; 7. ss — number of seconds with a leading zero; 8. [+|-]HHMI - time zone.

The structure of the <advanced> element is shown in Table 2

Table 2 — Structure of the <advanced> element

Title	Type	Format	Req.	Description
service	Attribute	int4	Yes	Service number
function	Attribute	varchar100	Yes	Reserved function name auth-acquiring which processes authentication and gives UUID

The structure of the <attribute> element is shown in Table 3

Table 3 - Structure of the <attribute> element

Title	Type	Format	Req.	Description
name	Attribute	varchar50	Yes	Attribute name
value	Attribute	varchar100	Yes	Attribute value

REQUEST:

<?xml version="1.0" encoding="UTF-8"?>
<request point="4306">
   <advanced service="1185" function="auth-acquiring" >
      <attribute name="amount" value="3"/>
      <attribute name="currency" value="USD"/>
      <attribute name="billing_fullname" value="John Doe"/>
      <attribute name="billing_address" value="1 Main Street"/>
      <attribute name="billing_city" value="New York"/>
      <attribute name="billing_state" value="NY"/>
      <attribute name="billing_zipcode" value="123456"/>
      <attribute name="billing_country" value="USA"/>
      <attribute name="redirect_url" value="https://abc.com/redirect?param=1432sadf"/>
      <attribute name="notify_url" value="https://api.abc.com/notify"/>
   </advanced>
</request>

RESPONSE IN CASE OF SUCCESS:

<response>
   <result code="0" service="0">
      <data>
         <input key="auth-token" keyTitle="Authorization Token" value="a7dc5879-35b4-466e-bd10-0a1d0228a4f9" valueTitle="a7dc5879-35b4-466e-bd10-0a1d0228a4f9" flags="0"/>
         <input key="pay-url" keyTitle="Payment URL" value="https://auth.khanpay.kz/pay-form/a7dc5879-35b4-466e-bd10-0a1d0228a4f9" valueTitle="a7dc5879-35b4-466e-bd10-0a1d0228a4f9" flags="0"/>
      </data>
   </result>
</response>

RESPONSE IN CASE OF ERROR:

<response>
   <result code="0" service="6"></result>
</response>

<response>
   <result code="0" service="4"></result>
</response>

2. Proceed Acquiring on Web UI

---

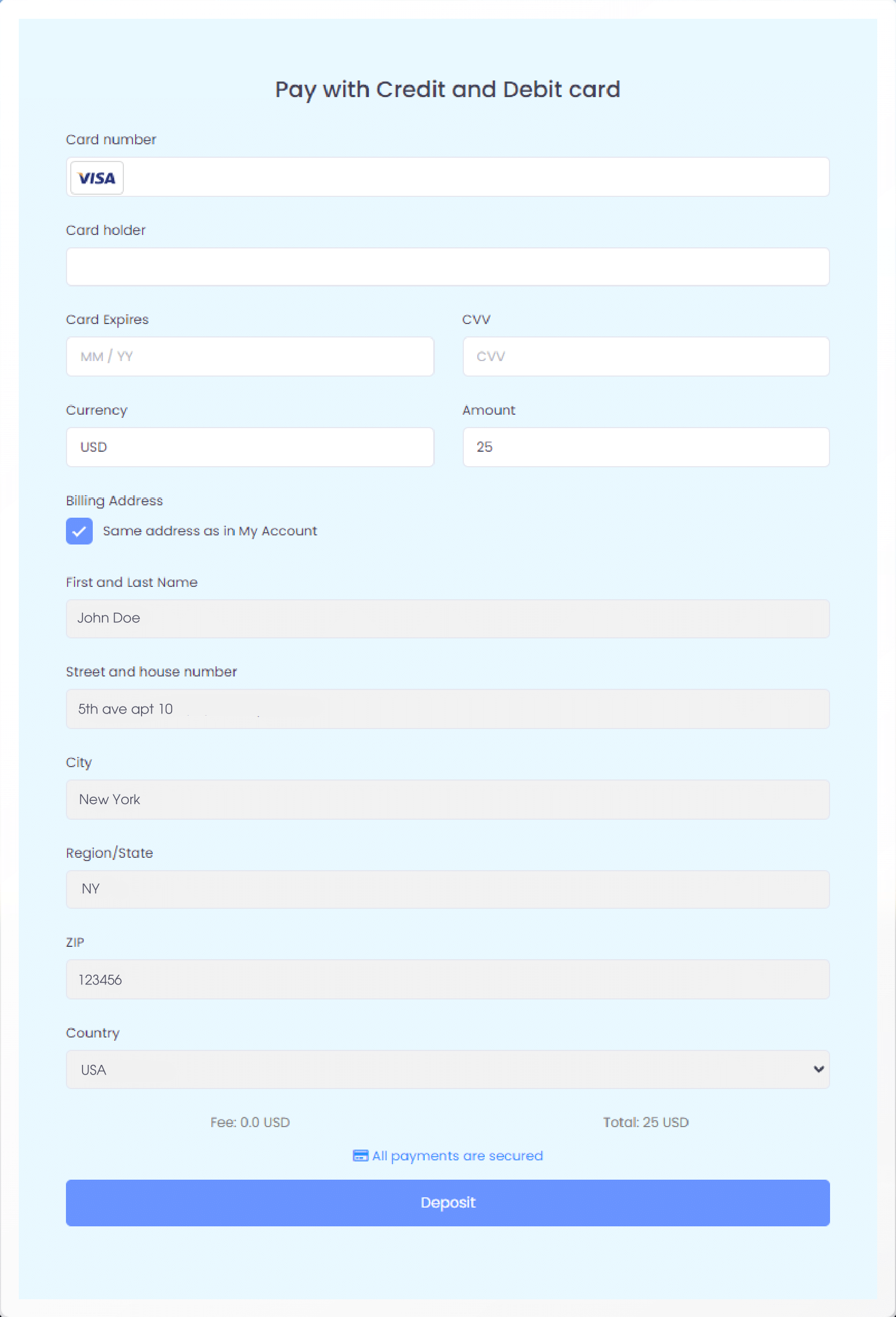

Following Web UI page will appear when open url coming from previous request:

EXAMPLE:

<response>
   <result code="0" service="0">
      <data>
         <input key="auth-token" keyTitle="Authorization Token" value="a7dc5879-35b4-466e-bd10-0a1d0228a4f9" valueTitle="a7dc5879-35b4-466e-bd10-0a1d0228a4f9" flags="0"/>
         <input key="pay-url" keyTitle="Payment URL" value="https://auth.khanpay.kz/pay-form/a7dc5879-35b4-466e-bd10-0a1d0228a4f9" valueTitle="a7dc5879-35b4-466e-bd10-0a1d0228a4f9" flags="0"/>
      </data>
   </result>
</response>

tip

By pressing “Deposit” system will start processing payment

• when payment is done, page will be redirected to url which is passed on step 1 redirect_url

• and also system will notify webhook to url which is passed on step 1 notify_url with all information of transaction
